Honeywell V5055C 1018 Industrial Gas Valve 2 1/2in. NPT
| SKU | 51700 |
| Quantity Available | 1 |
| Condition | Used |
| Manufacturer | Honeywell |
| Model | V5055C 1018 |
| Shipping | $17.56 (in the continental U.S.) |
Used.

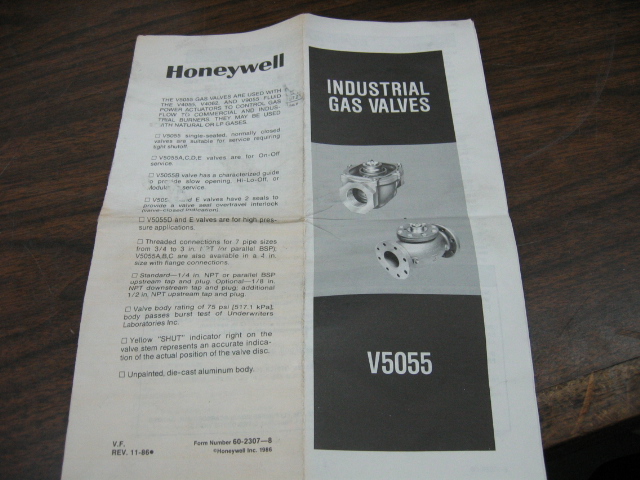

Includes installation manual.
Product Specifications
Description 2 1/2 in. NPT Industrial Gas Valve with On-off safety shut-off with double seal
Pipe Size (inch) 2 1/2 in.
Pipe Size (DN) DN65
Pipe Thread NPT
Capacity (cf/hr) 4250 cf/hr;120 m3/hr
Maximum Operating Differential Pressure (V4055A,D; V4062) 5 psi (.34 bar)
Maximum Operating Differential Pressure (V4055B or E) 15 psi (1 bar)
Temperature Ratings (F) when used with V9055 -40 F to +125 F
Temperature Ratings (C) when used with V9055 -40 C to +52 C
Operating Temperature Range (F) -40 F to +150 F
Operating Temperature Range (C) -40 C to +66 C
Approvals, Underwriters Laboratories Inc When used with V4055A,B,D,E, V4062, V9055: Listed, File
No. MH1639 Guide No. YIOZ
Approvals, Canadian Standards Association When used with V4055, V4062, and V5097: Certified
General listed File No. 158158, Class 3371 for USA and Canada
Approvals, Swiss RE (formerly IRI) When used with V4055A,B,D,E, V4062, V9055: Acceptable
Approvals, Factory Mutual When used with the V4055D,F and V9055A: Approved, Report Nos. 20698,
20835, 21172, and 24062
Includes 1/4 in. -18 NPT upstream tap and plug, 1/4 in. -18 NPT downstream tap and plug
Used With V9055
Used With V4055
Used With V4062
Features
Use with natural or LP gases.
Mount directly in gas supply line.
Include 1/4 in. NPT upstream and downstream taps and plug.
V5055 normally closed valves are rated for final shutoff service safety shutoff.
V5055A,C,D,E Valves are for On-Off service.
V5055C,E,F Valves have a double seal and are used with V4055D,E Actuators to provide proof-of-
closure switch and valve seal over-travel interlock.
